7inch Capacitive Touch Screen LCD (C), 1024×600, HDMI, IPS, Low Power

No reviews yet Write a Review
Evelta SKU:
061-11199
Manufacturer Part Number:
11199
₹5,575.50 inc. GST
₹4,725.00 ex. GST
Buy 10 or above
5% off
Request a quote for higher quantities

Description

7-inch HDMI display, with a resolution of 1024×600 and a capacitive touch panel, which supports Raspberry Pi and can also be used as a computer monitor.

Key Features
  • 7-inch IPS screen with a hardware resolution of 1024×600.
  • 5-points capacitive touch control.
  • Using with Raspberry Pi, it supports Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT, no need to install any drivers.
  • Using as a computer monitor, it supports Windows 10 / 8.1 / 8 / 7, five-point touch, no need to install any drivers.
  • Support backlight control, more power saving.

Device & System Support

Raspberry Pi
Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi

PC
Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free
Package Contents
  • 7inch HDMI LCD (C) x 1
  • HDMI cable x 1
  • HDMI to Micro HDMI Adapter x 1
  • USB type A plug to micro B plug cable x 1
  • RPi screws pack (4pcs) x 1
  • Quick start sheet x1

Resources

Software
Backlight Control
Note: We don't recommend you to do any hardware modification, which may damage LCD if you are not good at it. So be careful when you following this manual
External guides
3D Drawings
LCD Panel Dimension
Certification
Assembly tutorial

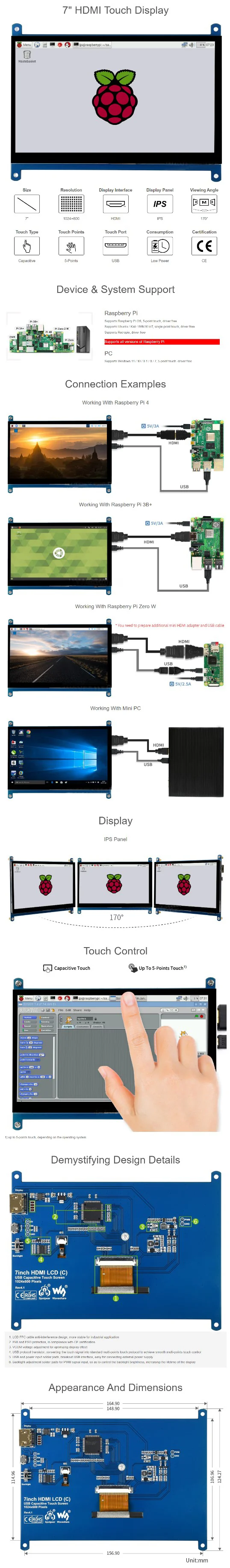

7" HDMI Touch Display

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With Mini PC

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system.

Demystifying Design Details

  • LCD FFC cable anti-interference design, more stable for industrial application
  • EMI and ESD protection, in compliance with CE certification
  • VCOM voltage adjustment for optimizing display effect
  • USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
  • USB and power input solder pads, breakout USB interface, easy for connecting external power supply
  • Backlight adjustment solder pads for PWM signal input, so as to control the backlight brightness, increasing the lifetime of the display

Appearance And Dimensions

Extra Information

Brand:
Waveshare
Display Size:
7 inch
Resolution:
1024x600
Display Port:
HDMI
Display Panel:
IPS
View Angle:
170 degree
Touch Type:
Capacitive
Touch Port:
USB
Touchened Glass Panel:
No
Fully Laminated:
No
Speaker:
No
Signal Output:
No
Device Support - PI:
Yes
Device Support - Jetson Nano:
No
Device Support - PC:
Yes
