BD24 Series 500V 25A 3Pin Male Plug IP67 Metal Shell Waterproof Power Connector

No reviews yet Write a Review
Evelta SKU:
Manufacturer Part Number:
₹968.90 inc. GST
₹821.10 ex. GST
Buy 10 - 24
10% off
Buy 25 or above
20% off
Request a quote for higher quantities


BD-24 series power and signal waterproof connectors can be used alone or fixed together to provide solutions for different industries equipment connection.Such as audio-visual equipment, medical equipment, industrial control, testing and measurement Equipment, AV system, broadcast television and communication industry and other fields.Suitable for connection of equipment installed in front and behind the board.

New BD-24 (M24 type) series waterproof connector, adopts streamlined dynamic design, one button device end pressing and rapid plugging, in order to prevent the use of end due to manual operation improper key failure factors can effectively increase the service life of the product.

For the mating part, please click here

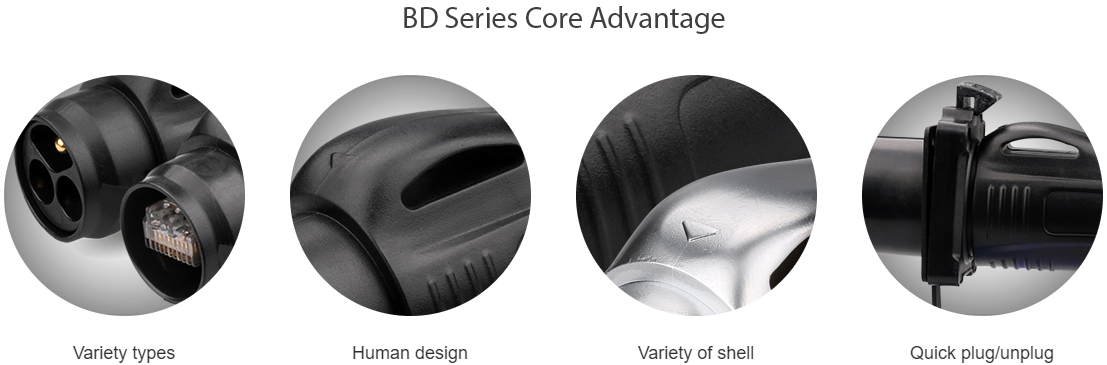

BD Series Core Advantage

BD Series Connection Graph



CNLINKO BD24 Metal Waterproof Connector


Extra Information

Linko Electric
Withstanding voltage:
Operating Voltage:
Contact resistance:
< 1mOhm
Rated Current:
Contact dimension:
Phi 3x3
Number of pins:
Insertion and extraction force:
5.4N Max
Mating cycle:
1700 times
Protection Level:
Temperature and humidity:
-40~+80C; 40C, 85%RH

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
