Smart IoT Port (SIP) | Digital Input based IoT Gateway | RS485 to MQTT Converter | GSM Gateway (4 Digital Input, 4 Digital Output & 44 MODBUS Address)

No reviews yet Write a Review
Evelta SKU:
187-SIP2DRS
Manufacturer Part Number:
SIP2DRS
₹38,645.00 inc. GST
₹32,750.00 ex. GST
Request a quote for higher quantities

Description

The SMART IoT PORTS (SIP2DRS) is GSM based IoT Module which is designed to read the legacy RS-485 based devices (sensors / transmitters) with four digital input/output and connect with any MQTT Broker (Ambeiiot, ThingsBoard.com etc.). The Ambeiiot platform is highly scalable that offers unlimited data storage, graphical view, search tool, real time viewing facility, alerts and user friendly dashboards.

Key Features
• GSM / GPRS Connectivity
• 4 Digital Inputs + 44 Modbus Slaves
• 4 Digital Inputs & 4 Digital Outputs
• RS-485 MODBUS RTU Input
• RS-485 MODBUS Output (For Repeaters)
• Inbuilt Memory and RTC for failsafe logging
• Device configuration with PC Software
• Settable Data Interval 1-Minute to 60-Minute.
• 2 x Settable Local Alarms (12 x LED and Buzzer Indication)
• Alert notifications on SMS (10 No.) and Email (5 No.)
• MQTT Cloud Connectivity
• JSON Data Format
• 9V to 24V DC Power Supply

Applications
• Sub-station Monitoring
• Cold Storage Monitoring
• Electrical Distribution
• Automation
• E-charging Point
• Generator Monitoring
• Environment Monitoring
• Smart Energy Monitoring
• Solar Energy Monitoring
• Water Monitoring
• Automatic Meter Reading
• Manufacturing Monitoring

Resources

Smart IoT Port (SIP) Features

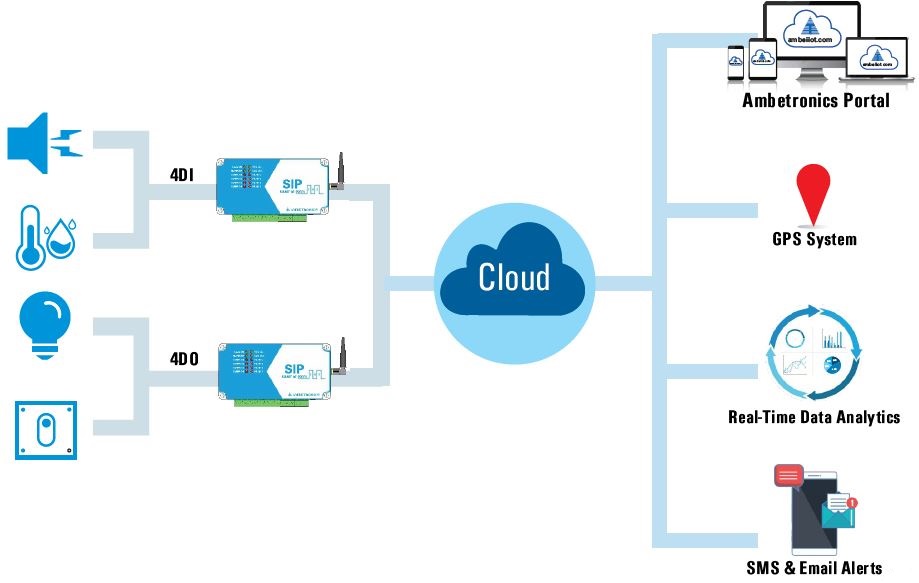

Smart IoT Port (SIP) Applications



Extra Information

Brand:
Ambetronics Engineers Pvt. Ltd.
Nodes:
4 Digital Inputs & 44 MODBUS Slaves
Configuration:
AEPL IoT PC Software
Operating Modes:
Programming and Application
Connectivity:
GSM/GPRS Connectivity
Antenna:
-3dBi
SIM Slots:
2 Nos
Ports:
1 × RS485 MODBUS RTU
Connector:
3-Pin Terminal Block
Buzzer:
Beep Sound
LED's:
12 LED's (Buzzer & LED indications)
SMS Notifications:
10 No. of SMS Notifications for user
Email Notifications:
5 No. of Email Notifications for user
Protocols (Cloud Connectivity):
MQTT
Transmission (Cloud):
Log
Data Interval (Cloud):
60 sec to 3600 sec
Power Supply:
12V-2A adaptor
Connector:
2-Pin Terminal Block
Operating Temperature:
0C to 50C
Storage Temperature:
0C to 60C
Relative Humidity:
10% to 90% RH, Non- Condensing
Weight:
~ 400g
Dimensions:
180(L) x 55(W) x 90(H) (With antenna & connectors)
Mounting:
Wall Mounting
