DH24 Series HDMI Female Socket IP67 Waterproof Signal Data Connector

CNLINKO

No reviews yet Write a Review
SKU:
131-DH-24-J/HDMI2/213/SX-43-402
Manufacturer Part Number:
DH-24-J/HDMI2/213/SX-43-402
₹467.28 inc. GST
₹396.00 ex. GST
DH-24-J/HDMI2/213/SX-43-402 - DH24 HDMI Female Socket IP67 Waterproof Signal Data Connector - Linko Electric
Buy 10 - 24
10% off
Buy 25 or above
20% off
₹467.28 inc. GST
₹396.00 ex. GST

Description

The DH-24 HDMI high-performance HDMI connector with quick lock for secure signal and data transmission. IP67 data connector in plastic housing in the DH series with size 24. The black plastic construction with gold-plated contacts ensures a long service life. The HDMI connector is waterproof and dustproof in accordance with IP67 protection class. The metal lock ensures a secure connection and protects against data and power interruptions. The maximum rated power for the data connector is 0.5 amps. The plug has a quick plug connection. The quick connector design allows it to be plugged in and unplugged with one hand.

For the mating part, please click here

Resources
Datasheet

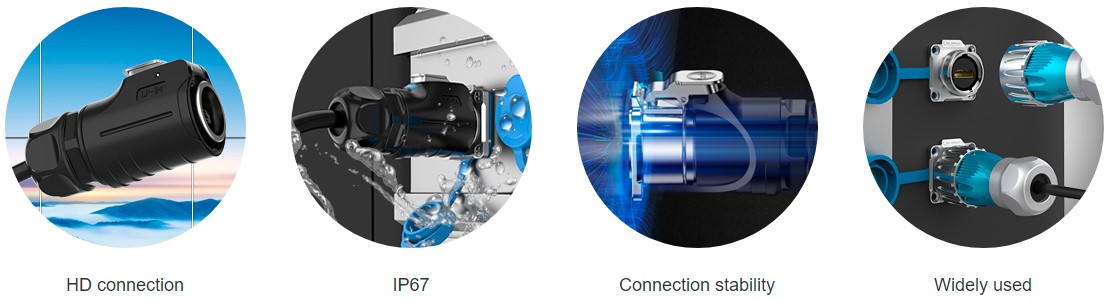

DH24 HDMI Series Core Advantage



DH24 HDMI Series Connection Graph

DH24 HDMI Appearance Dimension



CNLINKO DH24 Waterproof HDMI Connector



Technical Specifications

Brand:
CNLINKO
Connection Mode:
Quick bayonet connection
Wire Specification:
0.15mm～0.2mm/26-24AWG
Rated Current(A):
0.5A
Contact Resistance:
< 30mOhm
Withstand voltage (AC.V)1minute:
30V
Protection Level:
IP67
Mating Cycle:
> 500 times
Working Temperature:
-40～80C
Standard:
HDMI
Gender:
Female
Certification Standards:
Comply with the TUV and UL certification Standards
