Industrial 8-Channel Temperature and Humidity Data Logger

No reviews yet Write a Review
Evelta SKU:
187-TC-800-D
Manufacturer Part Number:
TC-800-D
₹24,485.00 inc. GST
₹20,750.00 ex. GST
Request a quote for higher quantities

Description

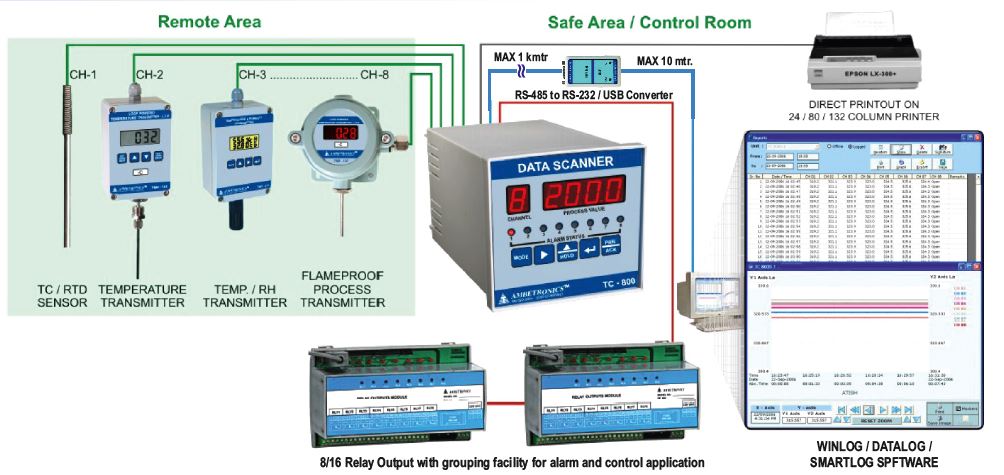

The TC-800-series is an 8 Channel fixed input type data logger/data scanner which is available in weatherproof, flameproof, or panel mounting type enclosures as per the requirement at the Client site.

Features
  • Used latest micro controller based technology for better accuracy
  • 8 Channel fixed input for all thermocouple, J, K, R, S, T, E, B, N programmable by user & RTD (PT-100), 4-20mA, 0-10 VDC factory settable.
  • Easy on-line field calibration by front panel membrane keypad
  • Field programmable channel scan time 1 to 59 sec., Logging Interval 1 to 9999 sec. & Printing interval 5 to 9999 sec.
  • Field programmable Delay time 1 to 99 sec. for Relay Output
  • Optional RS-232 / RS-485 Modbus Serial Port
  • Optional Parallel / USB Printing Port.

Technical Specification

  • Display: 4 digits of 13mm height Red L.E.D. display for ‘Process Value’ indication 1 digit of 13mm height Red L.E.D. display for ‘Channel Number’ indication
  • E.D. Indication: 8 Nos. Red L.E.D. is of 3 mm for Alarm Indications i.e. AL1 & AL2
  • Set Point: 2 independent set points for each channel with 2 common relay outputs & Programmable latch / non-latch facility for 2 common relays & Alarm indication
  • Control Action: HI - LO, LO - Very LO, HI - Very HI Control action logic; programmable by user.
  • Setting: Magnetic wand without opening enclosure cover for flameproof model
  • Relay Output: 1 NO/C/NC Relay Contact Rated 230VAC /5A for Relay-1 (AL1) & Relay-2 (AL 2)
  • Setting: Setting by 5 feather touch keypad pm front panel ‘MODE’, ‘SHIFT’, ‘INC’, ‘ENT’, ‘PRN / ACK’ for panel & WP model and push keys for flameproof model.
  • Scan Time: 1 to 50 sec scan / scroll time between each channel; Programmable by user
Environmental
  • Operating Temp: -40 to +85 C
  • Relative Humidity: Below 95% non-condensing
Optional
  • ISOLATED RS-232 / RS-485 communication with
  • MODBUS RTU Protocol.
  • Data Logging of Maximum 5000 records storing capacity for all Channels.
  • Interface of Parallel Printer Port for Online / Offline report print.
  • Relay Modules for individual Alarm relay for each / Grouping channels.
Panel Mounting Housing
  • Protection Class : IP - 40
  • Cabinet Material : ABS Plastic, White Colour
  • Cable Entry : Terminal Connector for Connection
  • Dimension : 96 (H) x 96 (W) x 175 (D) in mm
  • Cut-out : 92 (H) x 92 (W) in mm
  • Mounting : Panel Mount
  • Weight : 1 kg
Application
  • ISO Certification records, Validation process certifying
  • Pharmaceutical process validation with graph & excel report in Autoclaves
  • Online profile recording for Oven & BOD, Incubator, Humidity Chamber
  • Winding temperature of Generators, Bearings, Motors, Transformers
  • To know heat Profile in furnace, foundries for Heat treatment application
  • Primary & auxiliary temperature scanning of boiler
  • Chemical & Hazardous area where data monitoring is essential
  • Room Mapping in Pharmaceutical
