LP-16 Series 250V 5A 8-Pin Female Socket IP67 Waterproof Power Connector Panel Mount

No reviews yet Write a Review
Evelta SKU:
131-LP-16-J08SX-03-101
Manufacturer Part Number:
LP-16-J08SX-03-101
₹499.32 inc. GST
₹423.15 ex. GST
Buy 10 - 24
10% off
Buy 25 or above
20% off
Request a quote for higher quantities

Description

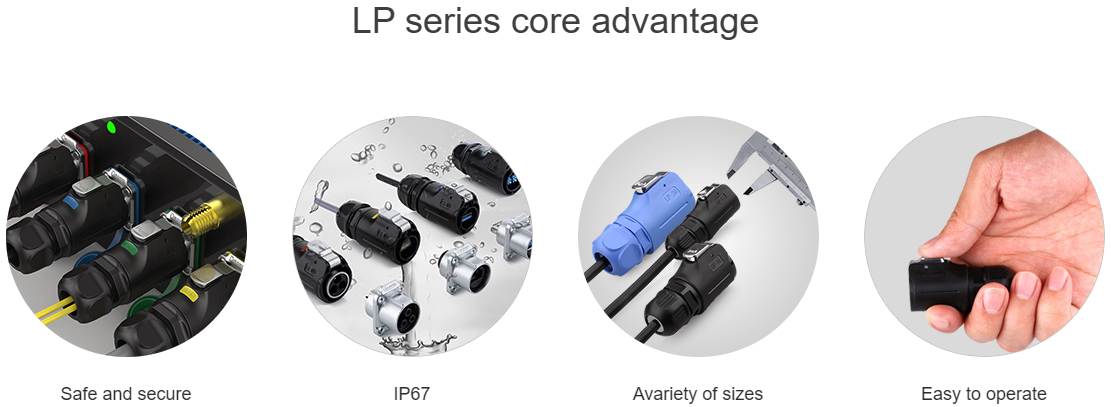

The LP-16 series connectors are high quality with the high quality performance under the harsh situations, widely used in the lighting system, Audio, Medical equipment, industrial control, and testing measurement equipment and so on. The quick plug design allows one-hand plug/unplug. The copper needle of the power is adopted gold plated technology, which can resist corrosion and suitable for high low temperatures. Compact components, simple operation, fast and stable connection, IP67 rated outdoor waterproof performance. Satisfy the quality and meet the environmental protection requirements of international industrial equipment.

For the mating part, please click here

Resources










Extra Information

Brand:
Linko Electric
Insertion and extraction force:
2.4N Max
Temperature and humidity:
-40~80C, 40C, 85%RH
Protection Level:
IP67
Connecting mode:
Easy locking type
Rated Current:
5A
Mating cycle:
1700 times
Operating Voltage:
250V
Contact dimension:
Phi 1*8
Diameter range:
7~9mm
Number of pins:
8
Contact resistance:
< 5mohm
Method of connecting cable:
Solder
Screw torque:
42-53 (N.m)
Withstand voltage (AC) 1min:
1500V
