7Semi 1-Wire Digital Humidity and Temperature Sensor Probe High Accuracy

No reviews yet Write a Review
Evelta SKU:
004-ES-13507
Manufacturer Part Number:
ES-13507
₹1,486.80 inc. GST
₹1,260.00 ex. GST
Buy 10 - 19
10% off
Buy 20 or above
15% off
Request a quote for higher quantities

Description

7Semi's ES-13507 offers true 1-wire protocol based industry-proven humidity and temperature sensor with best price-performance ratio on the market. The one-wire digital humidity and temperature sensor probe build on a completely new and optimized CMOSens chip that offers reduced power consumption and improved accuracy specifications encapsulated within a breathable metal shell probe. With a supply voltage of 3.3 V, it is the perfect fit for mobile and battery-driven applications.

The high-accuracy temperature sensor features typical and maximal accuracies that have been honed down to humidity RH = +- 1.8% RH and temperature T = +- 0.2 C, making it suitable for the most demanding applications in all industries.

The probe connector is Mini Round Shell type and wire length is 1 meter. It could be a great choice for measuring Humidity and Temperature in harsh environment.

Key Features
  • 3.3V voltage supply
  • Operating temperature range: -40 ~ 125C
  • Fully calibrated
  • 1-wire interface
  • Low power consumption
  • Breatable shell
  • Corrosion resistance
  • High temperature resistance
  • Large air permeability, fast gas humidity flow and exchange rate, uniform divergence.
  • Excellent ability of anti-dust, anti-corrosion and waterproof (IP65)
  • Protecting PCB modules from dust, particulate pollution and oxidation of most chemicals to ensure sensors a long-term stable operation, higher reliability and long service life
  • Remarkable performance in harsh environments such as small space, pipe, trench, wall pass mounting, high-pressure space, vacuum chamber, test chamber, large flow mediums, high humidity area, high temperature and heat environment, hot drying process, dangerous zones, explosive environment containing explosive gas or dust, etc
  • 150 bar anti-pressure capability
  • Seamless integrated, shedding-free
  • The stainless steel porous housing for sensor probe, have accurate pore size, uniform and even-distributed apertures.
  • Pore size range: 5 to 120 microns; it has good filtration, dustproof and interception effect, high filtration efficiency.
  • Excellent long term stability

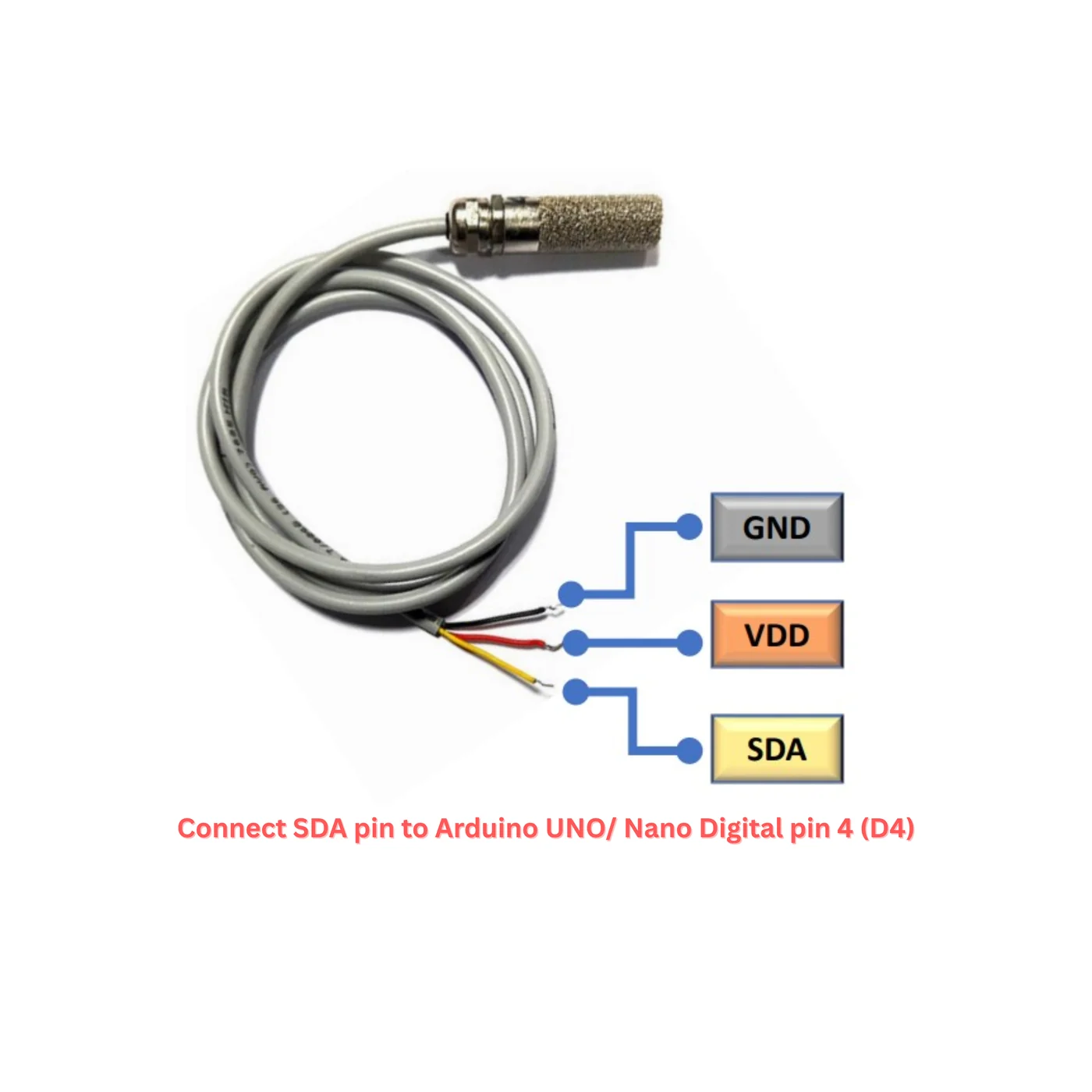

1-wire Humidity and Temperature Sensor Probe Pinouts

Resources

7Semi One Wire Digital Humidity and Temperature Sensor Applications



Product FAQ
Q: What is the common use of a Temperature and Humidity Sensor?
A: Temperature and Humidity sensors are among the most commonly used environmental sensors. It is widely used to provide the actual humidity condition within air at any given point or in any given place. Such devices are commonly used in situations in which air conditions may be extreme or where air conditions need to be controlled due to varying reasons.

Q: Why is Temperature and Humidity sensors important in some industries?
A: Humidity is the presence of water within the air. Measuring humidity within the environment can be critical due to the fact that the higher the humidity, the warmer it may seem. In industries, humidity measurement is often important because it can affect the health and safety of personnel as well as the cost of the product. As a result, temperature and humidity sensors are often quite important.

Q: How do I choose a suitable Temperature and Humidity Sensor?
A: There are some important specifications you might need to consider when you choose this product. This includes:
  • Accuracy
  • Long-term stability
  • Ability to recover from condensation
  • Resistance to physical and chemical contaminants
  • Interchangeability
  • Repeatability

Extra Information

Brand:
7Semi
Operating Voltage:
3.3V
Interface:
1-wire
Temperature Range:
-40 to 125 C
Humidity Range:
0~100%rh
Humidity Accuracy:
+- 1.8 %RH
Temperature Accuracy:
+- 0.2 C
Wiring:
Red: 3.3V, Black: GND, Yellow: Data
Probe:
Metal probe with copper sintered filter/ PE
Response Time:
2 s
Average Supply Current:
0.4 uA
Calibration:
Factory Calibrated
