Dual TB6612FNG 1A DC Motor Driver Board SparkFun

No reviews yet Write a Review
Evelta SKU:
057-ROB-14451
Manufacturer Part Number:
ROB-14451
₹424.80 inc. GST
₹360.00 ex. GST
Request a quote for higher quantities

Description

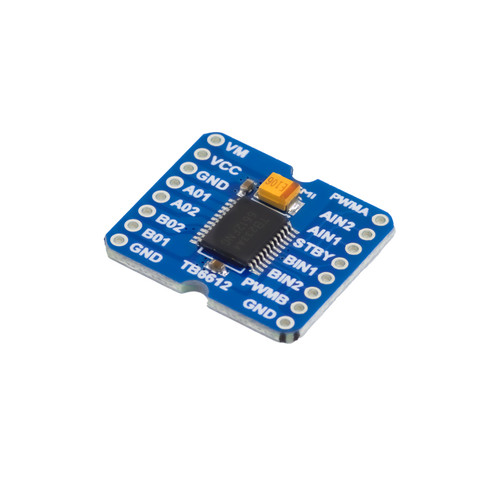

The TB6612FNG Motor Driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes: CW, CCW, short-brake and stop. The two motor outputs (A and B) can be separately controlled, and the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.

Resources
Datasheet (TB6612FNG)
GitHub (v1.1c)


Extra Information

Brand:
SparkFun
