Sipeed MAix BiT Suit With LCD Camera Development Board - SeeedStudio

No reviews yet Write a Review
SKU:
078-110991190
Manufacturer Part No:
110991190
₹2,308.08 inc. GST
₹1,956.00 ex. GST

Description

AI is pervasive today, from consumer to enterprise applications. With the explosive growth of connected devices, combined with a demand for privacy/confidentiality, low latency and bandwidth constraints, AI models trained in the cloud increasingly need to be run at the edge. MAIX is Sipeed’s purpose-built module designed to run AI at the edge, we called it AIoT. It delivers high performance in a small physical and power footprint, enabling the deployment of high-accuracy AI at the edge, and the competitive price make it possible embed to any IoT devices. As you see, Sipeed MAIX is quite like Google edge TPU, but it act as master controller, not an accelerator like edge TPU, so it is more low cost and low power than AP+edge TPU solution.

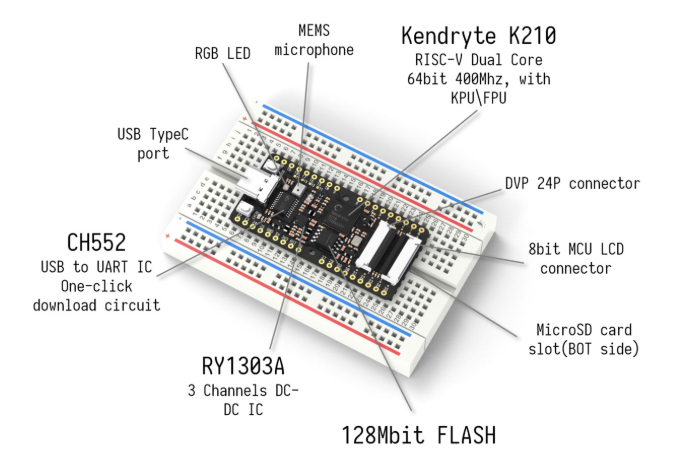

Sipeed MAix BiT development board
As many DIYer want to build their own work with breadboard, Sipeed newly provide breadboard-friendly board for you, it called MAix BiT
Resources


Extra Information

Debugging Support:
High-speed UART and JTAG interface for debugging
Micro SD card (TF card) slot:
Support Self-elastic card holder
GPIO interface:
All GPIOs connected to header 2*20 2.54mm
One-click Download circuit:
Just connect the USB typeC cable to complete the download Onborad CH340, which support 2Mbps baudrate
DVP Camera connector:
24P 0.5mm FPC connector
CPU:
RISC-V Dual Core 64bit, 400Mh adjustable
Supply current:
>600mA
Button:
RST button and USR button
Supply voltage:
4.8V ~5.2V
LCD connector:
8bit MCU LCD 24P 0.5mm FPC connector
Working temperature:
-30~85C
FreeRtos & Standard SDK:
Support FreeRtos and Standrad development kit
Machine hearing:
High performance microphone array processor
Temperature rise:
<30K
MicroPython Support:
Support MicroPython on M1
Machine vision:
Machine vision based on convolutional neural network
