USB TO UART solution with USB micro connector (FT232)

No reviews yet Write a Review
Evelta SKU:
061-11324
Manufacturer Part Number:
11324
₹525.10 inc. GST
₹445.00 ex. GST
Request a quote for higher quantities

Description

FT232 USB UART Board (micro)

PACKAGE CONTENT



  1. FT232 USB UART Board (micro) x 1
  2. 5-pin male pinheader & 5-pin female pinheader x 2
  3. 6-pin custom connector jumper wire x 1



Features



  1. Original FT232RL onboard
  2. Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10...
  3. 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
  4. 3 LEDs: TXD LED, RXD LED, POWER LED
  5. Functional Pins
        -TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders
        -The other Pins : accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)
How to Use
In the case of working with a MCU:

  1. VCCIO - 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
  2. GND - GND
  3. TXD - MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
  4. RXD - MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
  5. RTS - MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
  6. CTS - MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

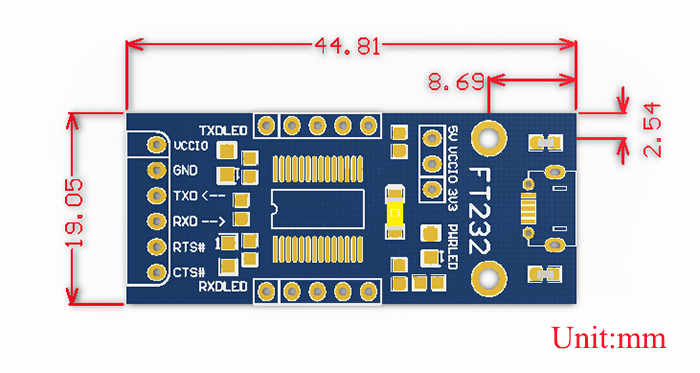

Dimension
